TideCell Thermostatic Mixing System

TideCell Thermostatic Mixing System

 TideCell Thermostatic Mixing System is a single-use mixer utilizing an unique double mixing design to enhance the mixing efficiency.   TideCell Mixer, a brilliant idea of enhancing mixing and heating efficiency by combining external and internal mixing that could take good care of  both micro and macro mixing effect during the process.  A direct heating that could control the temperature to the right set point during short period of time and eliminate the time consuming and inconsistency during temperature rising or lowering.   Double mixing, Double efficiency.  What a brilliant idea of mixing!

Trade Description

Product Feature

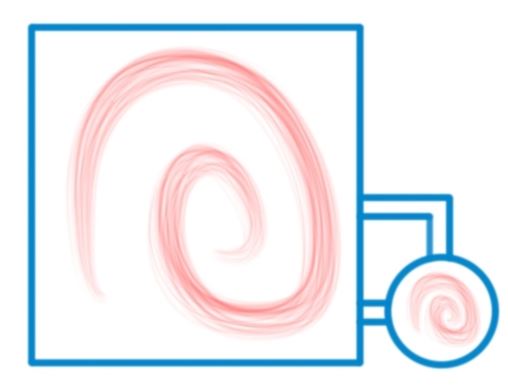

Double Mixing Principle

TideCell Mixer, a brilliant idea of enhancing mixing and heating efficiency by combining external and internal mixing that could take good care of  both micro and macro mixing effect during the process.  A direct heating that could control the temperature to the right set point during short period of time and eliminate the time consuming and inconsistency during temperature rising or lowering.

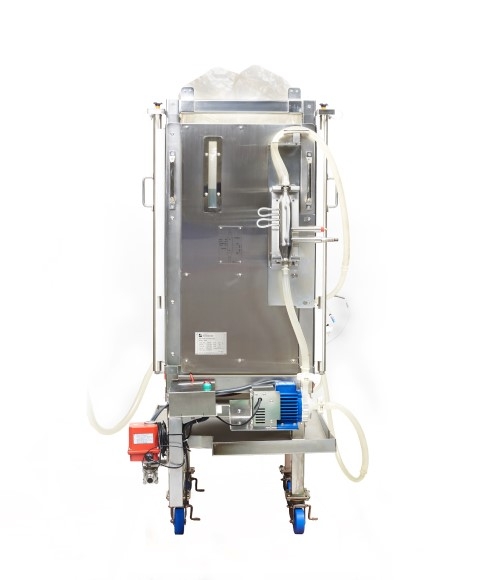

Stainless steel outer case with single-use mixing bag

  •    Working volume range from 50 L, 100 L, 200 L, 500 L to 1,000 L
  •    Monitoring probes, including pH, DO, temperature, leakage sensors, and load cells are equipped.
  •    Reduce contamination risks of medium homogenization by contact-free pump based on magnetic levitation.

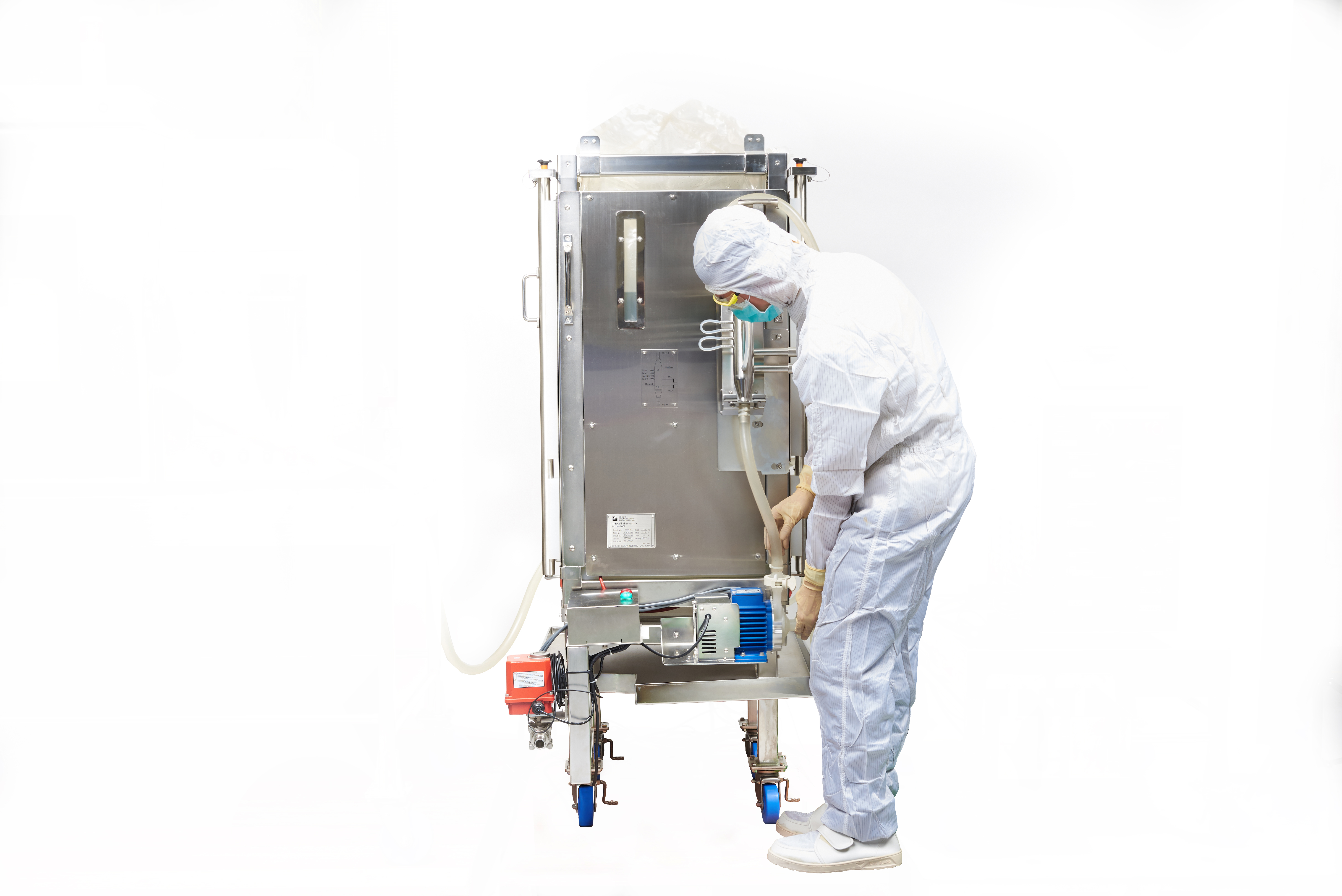

  •    The open-side feature allows easy installation and disassembly of the mixing bag, eliminating turnaround time.

The TideCell Mixing System is design to provide sterile and efficient homogenization of the external medium supply for the cell culture bioreactor. Choices of 50 L, 100 L, 200 L, 500 L to 1,000 L single-use mixing bags enables flexible applications for process development and vaccine production.

In many of the commercial mixer designs, inconveniences often come from installing the mixing bag from the top entry and hooking shaft of the impeller while carefully orienting the shaft and bag ports. Heating / cooling efficiency of traditional water jackets is also low, taking longer time for temperature equilibrium and the operation turnaround. TideCell Mixing System eases the settlement of the mixing bag by both side doors and large port windows. After the run, simply harvest the products, cut welded C-flex tubing, drag out the bag, and proceed to the next. In addition, the mixing bag, with bearingless, magnetic pump, ensures efficient, low-shear stress, and foam-free mass transfer. This feature, combined with a sterile medium supply chamber, help maintain pH/nutrient consistency from one cell batch to the next.

With consistent vessel geometries, TideCell Mixing System allows reproducible single-use mixing of a wide range of volumes, and fits TideCell series bioreactors.


Specification:
Mixer
100 L
200 L
500 L
1,000 L
Material
SUS 304
SUS 304
SUS 304
SUS 304
Dimension (w × d × h)
50 × 76 × 120 cm
70 × 88 × 147 cm
78 × 104 × 182 cm
101 × 132 × 180 cm
Voltage
220 V, 50~60 Hz
220 V, 50~60 Hz
220 V, 50~60 Hz
220 V, 50~60 Hz
Weight (empty)
~148 kg
~191 kg
~294 kg
~421 kg
Working Volume
50~110 L
100~200 L
250~550 L
500~1100 L
Mixing Method
Magnetic-driven impeller
Magnetic-driven impeller
Magnetic-driven impeller
Magnetic-driven impeller
Motor Power
200 W
600 W
600 W
600 W
Max Flow Rate
21 L/ min
75 L/min
75 L/min
75 L/min
Wet Pump Volume
24 ml
113 ml
113 ml
113 ml
Pump Head Material
Polypropylene
(FDA, USP-VI, BSE/TSE Animal free)
Sensor
Ø   Temperature sensor (1)

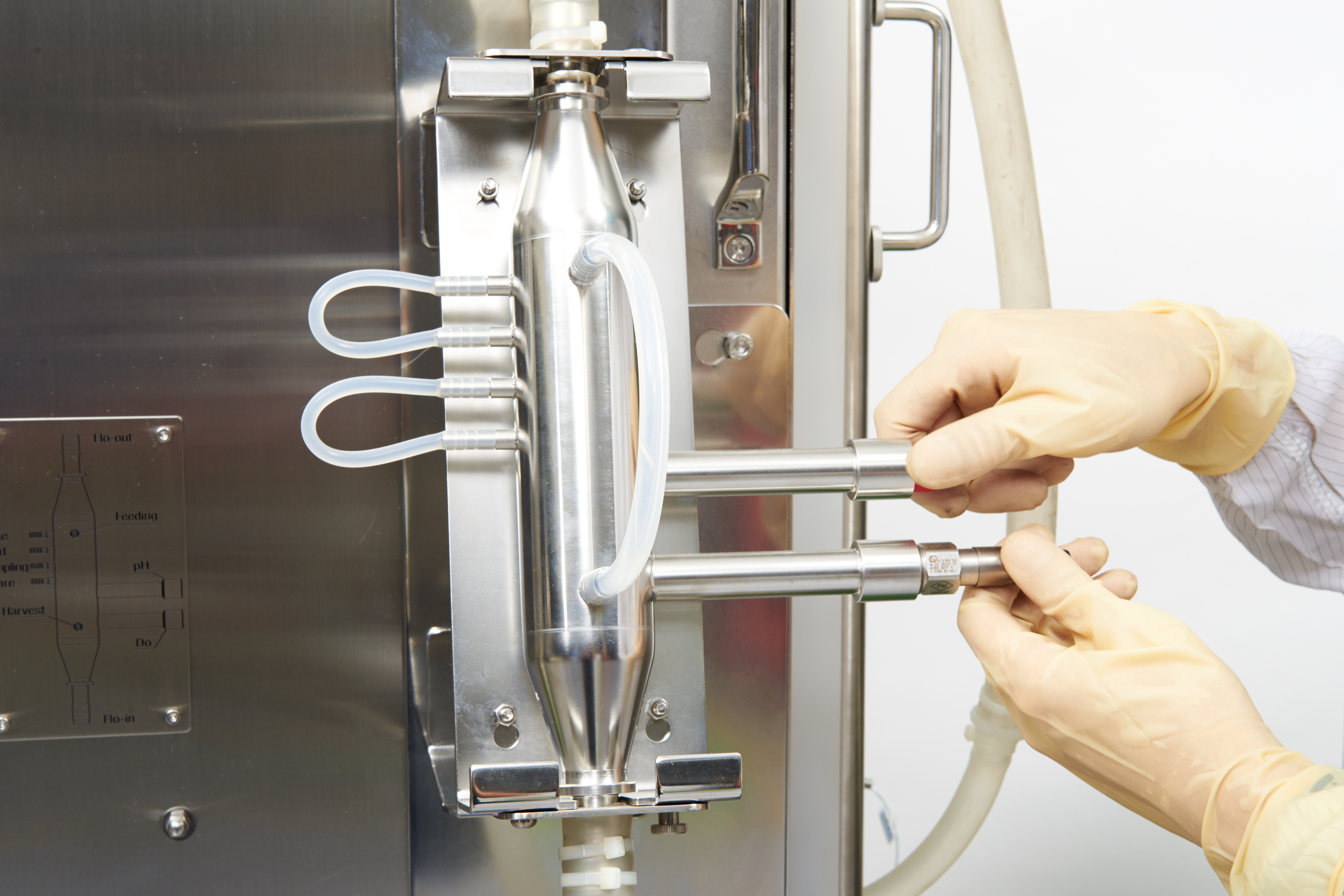

Ø   PH probe (on probe holder) (1)
Ø   DO probe (on probe holder) (1)
Ø   Leakage sensor (1)
Ø   Load cell (4)
Gas Supply
1.2~1.5 bar
1.2~1.5 bar
1.5~2.0 bar
1.5~2.0 bar
View Window
Yes
Yes
Yes
Yes
Castor
Yes
Yes
Yes
Yes

Principle:
The core of the TideCell Mixing System, bearingless pump, is based on the magnetic levitation. The impeller of the pump is pre-installed in a sealed casing, held and driven by the magnetic force, where the induced thrust acts in just one direction.

Performance:
The TideCell Mixing System provides efficient homogenization in a small foot print with low shear forces, reduced risk of contamination, and no particle generation. The technology of the pump has been proven in the medical and semiconductor industries.
Product
Mixer-100
Mixer-200
Mixer-500
Mixer-1000
Max. Flow Rate
21 L/min
75 L/min
75 L/min
75 L/min
Max. Differential Pressure
2 bar
3.1 bar
3.1 bar
3.1 bar
Equilibrium Time
<250 min
<250 min
<250 min
<250 min
Resource:

1.          Product Introduction

Order Information:
Product
Cat. No.
Availability
Thermostatic Mixer-100 L
TCA20100
Contact CESCO Bioengineering
Thermostatic Mixer-200 L
TCA20200
Contact CESCO Bioengineering
Thermostatic Mixer-500 L
TCA20500
Contact CESCO Bioengineering
Thermostatic Mixer-1000 L
TCA21000
Contact CESCO Bioengineering
TideCell pH/DO Controller/AutoFeeder-1200
TCA41200
Contact CESCO Bioengineering
TideCell-020 Feed/Harvest tank, 250 L, with caster, 2pc/set
TCA60225
Contact CESCO Bioengineering
TideCell-010 High-Density Cell Culture System
TCS00100
Contact CESCO Bioengineering
TideCell-020 High-Density Cell Culture System
TCS00200
Contact CESCO Bioengineering
TideCell-100 High-Density Cell Culture System
TCS01000
Contact CESCO Bioengineering
TideCell 100 L Mixing Bag, 1 pc/pk
TCB30100
Contact CESCO Bioengineering
TideCell 200 L Mixing Bag, 1 pc/pk
TCB30200
Contact CESCO Bioengineering
TideCell 500 L Mixing Bag, 1 pc/pk
TCB30500
Contact CESCO Bioengineering
TideCell 1,000 L Mixing Bag, 1 pc/pk
TCB31000
Contact CESCO Bioengineering
TideCell Perfusion Bag 200 L, 1 pc/pk
TCB20200
Contact CESCO Bioengineering
TideCell Perfusion Bag 500 L, 1 pc/pk
TCB20500
Contact CESCO Bioengineering
TideCell Perfusion Bag 1,000 L, 1 pc/pk
TCB21000
Contact CESCO Bioengineering
