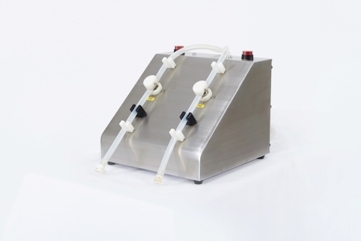

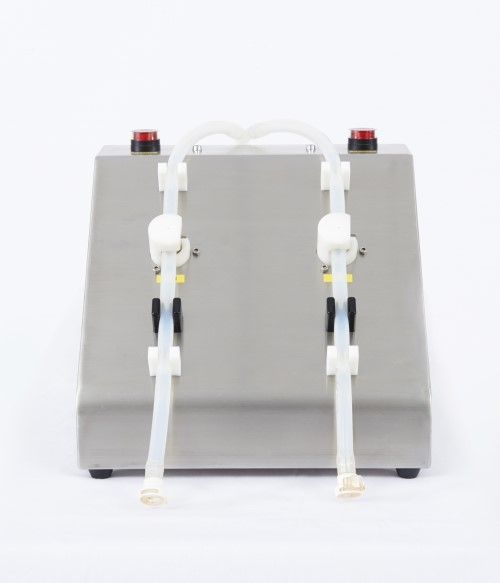

Perfusion Auto-switch System

Perfusion Auto-switch System

 The Perfusion Auto-switch System incorporates a reliable non-contact ultrasonic sensor for air bubble, air-in-line and liquid detection. During the perfusion process, the fresh medium is continuously supplied for the cell culture while the spent culture medium is continued harvested. Once the medium is depleted in one of the feeding tank, the Perfusion Auto-switch System will switch the medium line to the other feeding tank immediately, ensuring the continuous medium supply.


In addition, the bubble size, cumulative air detection over time, and response time can be user-defined.

Trade Description

Product Feature

 Improve the Automatic Feeding Process
  •    Enable detection of empty feeding tank and switch the medium supply to the other feeding tank for continuous cell culture
  •    No danger of contamination to the liquid
  •    Accuracy is not affected by fluid or tubing color

The Perfusion Auto-switch System incorporates a reliable non-contact ultrasonic sensor for air bubble, air-in-line and liquid detection. During the perfusion process, the fresh medium is continuously supplied for the cell culture while the spent culture medium is continued harvested. Once the medium is depleted in one of the feeding tank, the Perfusion Auto-switch System will switch the medium line to the other feeding tank immediately, ensuring the continuous medium supply.

In addition, the bubble size, cumulative air detection over time, and response time can be user-defined.


Specification:
Perfusion Auto-switch System
Dimension
300(w) x 344(d) x 271(h) mm
LED Indicator
Green color for Wet, Red color for Dry
Response Time
Air Detection (Wet to Dry): 215 μS typical
Liquid Detection (Dry to Wet): 46 mS typical
Alarm
Medium depletion alarm


Principle:
The sensor of the Perfusion Auto-switch System is designed with integral, microprocessor based on the pulse-type circuitry.


Performance:
The Perfusion Auto-switch System provides highly reliable, non-invasive air/liquid detection in continuous medium supply.


Resource:
1.          Product Introduction
2.          TideCell Brochure



Order Information:
Product
Cat. No.
Availability
Perfusion Auto-switch System
TCA71000
Contact CESCO Bioengineering
pH/DO Controller/AutoFeeder-1200
TCA41200
Contact CESCO Bioengineering
TideCell-020 High-Density Cell Culture System
TCS00200
Contact CESCO Bioengineering
TideCell-100 High-Density Cell Culture System
TCS01000
Contact CESCO Bioengineering
